STYRKR

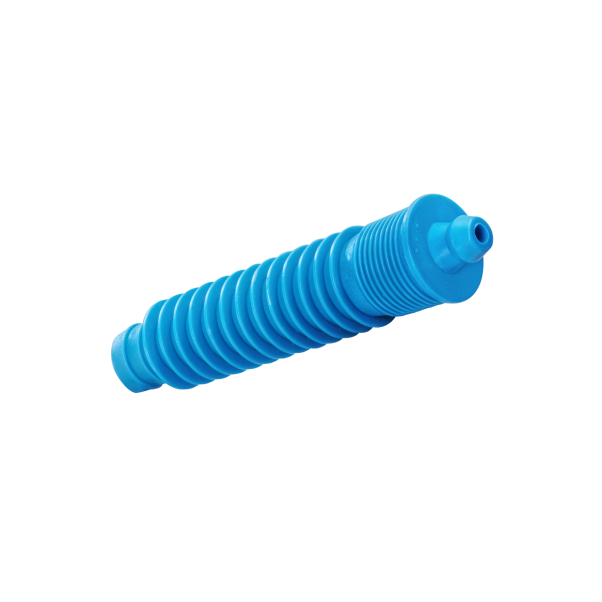

PI-PH 12/65 - Plastic injection packers

PI-PH 12/65 - Plastic injection packers

$1.02 USD
$1.02 USD
Sale Sold out
Shipping calculated at checkout.
  • material: PLASTIC
  • diameter of injection hole: Ø12
  • length: 65 mm

Plastic packer push-in, ideal for work that does not require high pressure (for pressures below 60 BAR). Virtually zero valve opening pressure due to gravity valve.
Packers are suitable for saturation of structures as well as curtain injections. Ideal for injection of water solutions, silicates. The injector has a non-return valve. Very attractive price.

Features:

  • Carefully formulated polyamide blend provides ideal injector anchorage
  • Ensures high flexibility of the injector anchor leaves
  • Due to the use of a check valve a very high tightness is obtained

When driving the injector into the building structure, it should be driven with a tapping tool (e.g. socket spanner 7) or a dedicated HAMMER POD so as not to deform the valve.

PACKER INSTALLATION:

The packer should be placed in the injection hole, and tapped with a rubber mallet or hammer tool under and impact hammer until a perceptible resistance is felt.

When finished, remove the injector with a crowbar or drill to remove it.
